LED Canopy Light - 150W - 21,000 Lumens - 5 Year Warranty - Slim profile

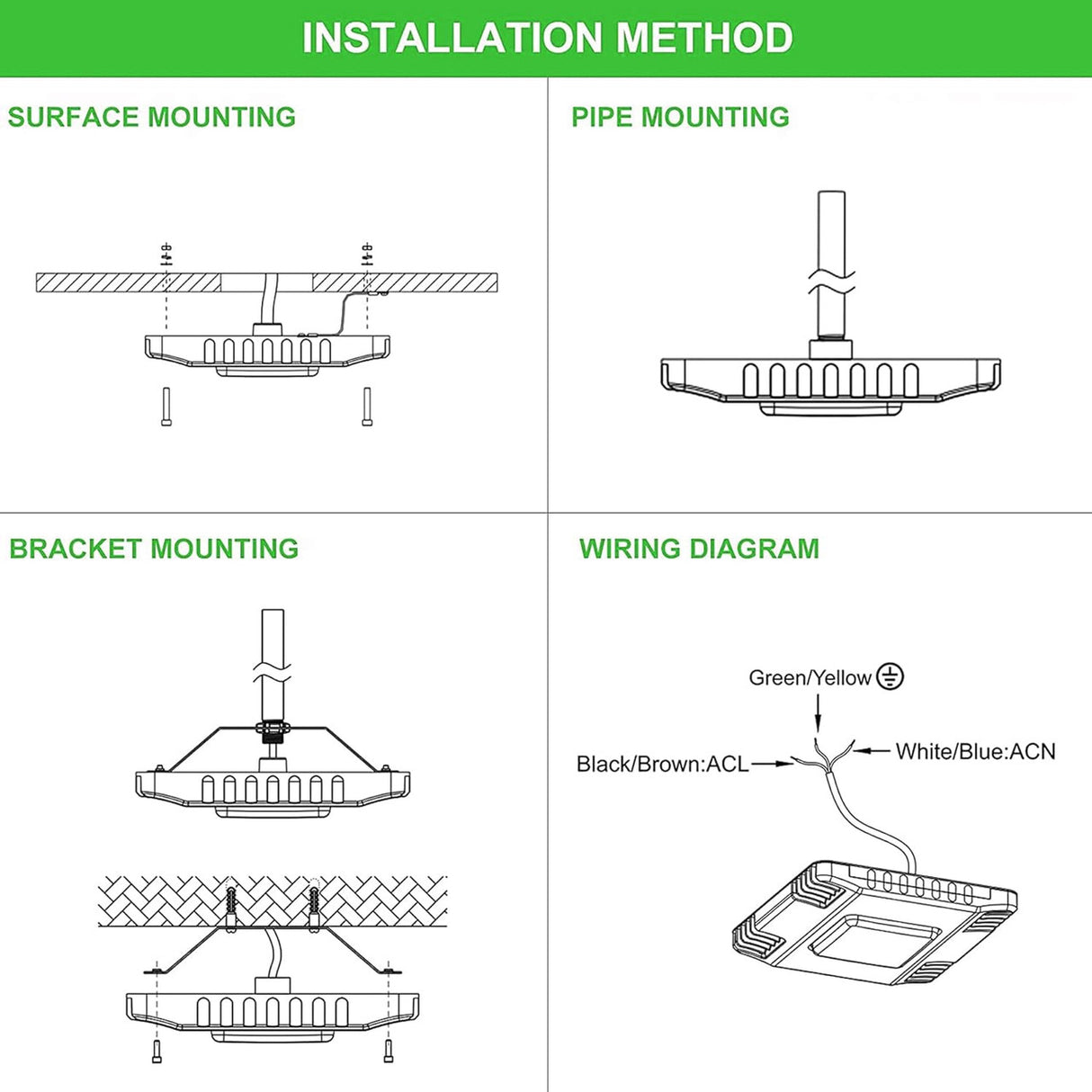

Installation Method 1 (Surface Mount)

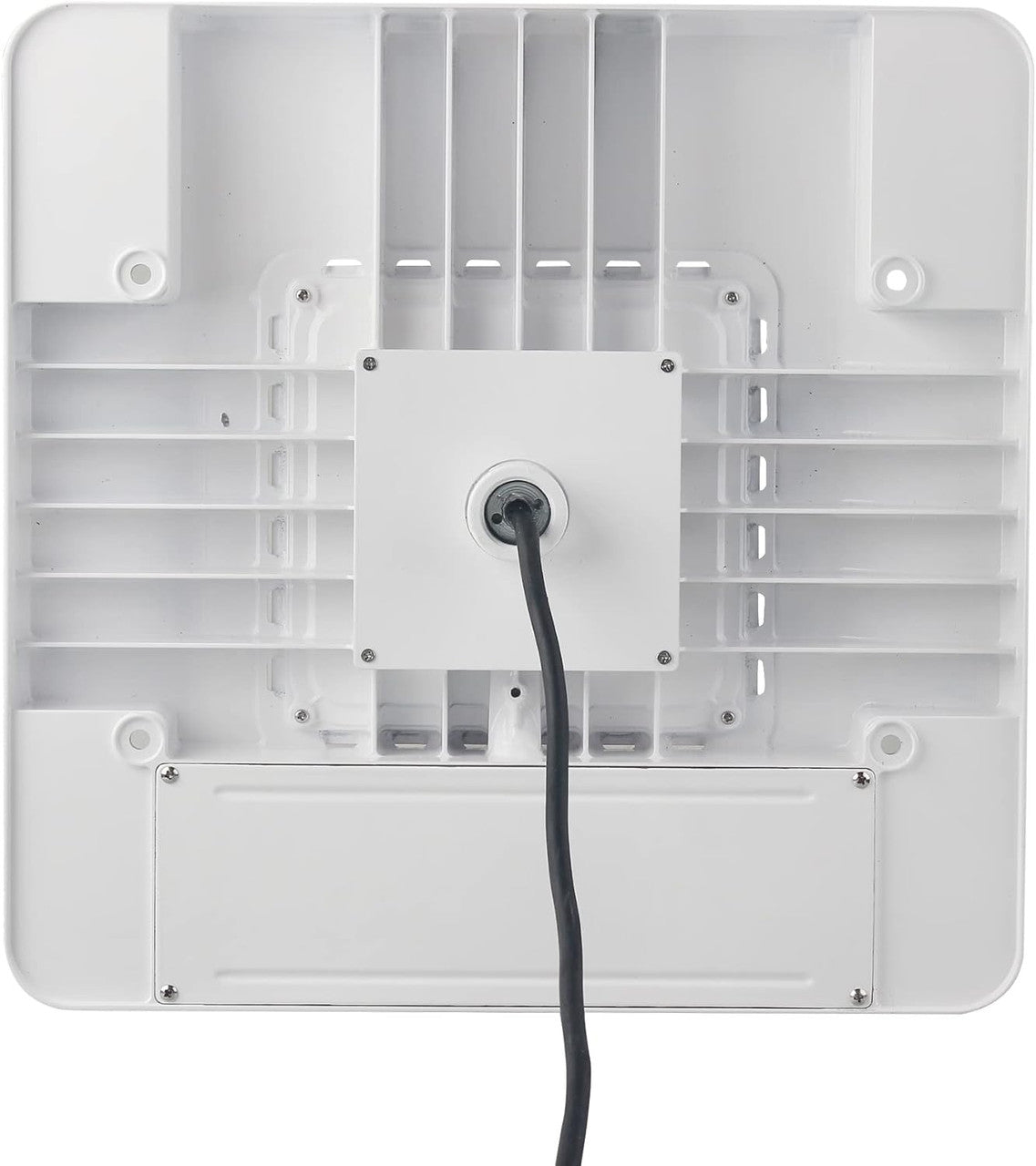

1. Fix one side of the accessory safety rope on the back of the fixture (Figure 1 ).

2. Use electric drill to set fixed holes through the ceiling (Figure 2).

3. Fix the other side of the safety rope to the ceiling, connect the cable, Black-L, White-N, Green-Ground, makesure to protect the wire joints, and finally fix the fixture on the ceiling with screws.

Installation Method 2 (Conduit Pipe Mount)

1. Connect the wring to the local power supply in the 3/4”conduit pipe (Figure 4).

2. Screw the fixture to the 3/4”conduit pipe (Figure 5).

Installation Method 3 (Bracket Mount)

1. Drill the alignment holes on the top ceiling, make them match to the holes on the mounting bracket.

2. lnsert the supplied rubbers into the alignment holes, then fix the mounting plate. Then fix the mounting plate on the ceiling by supplied screws. (Figure 9)

3. Mount the fixture on the mounting plate by supplied screws. (Figure 10)

4. Make wiring connections and make sure good wire protection.
